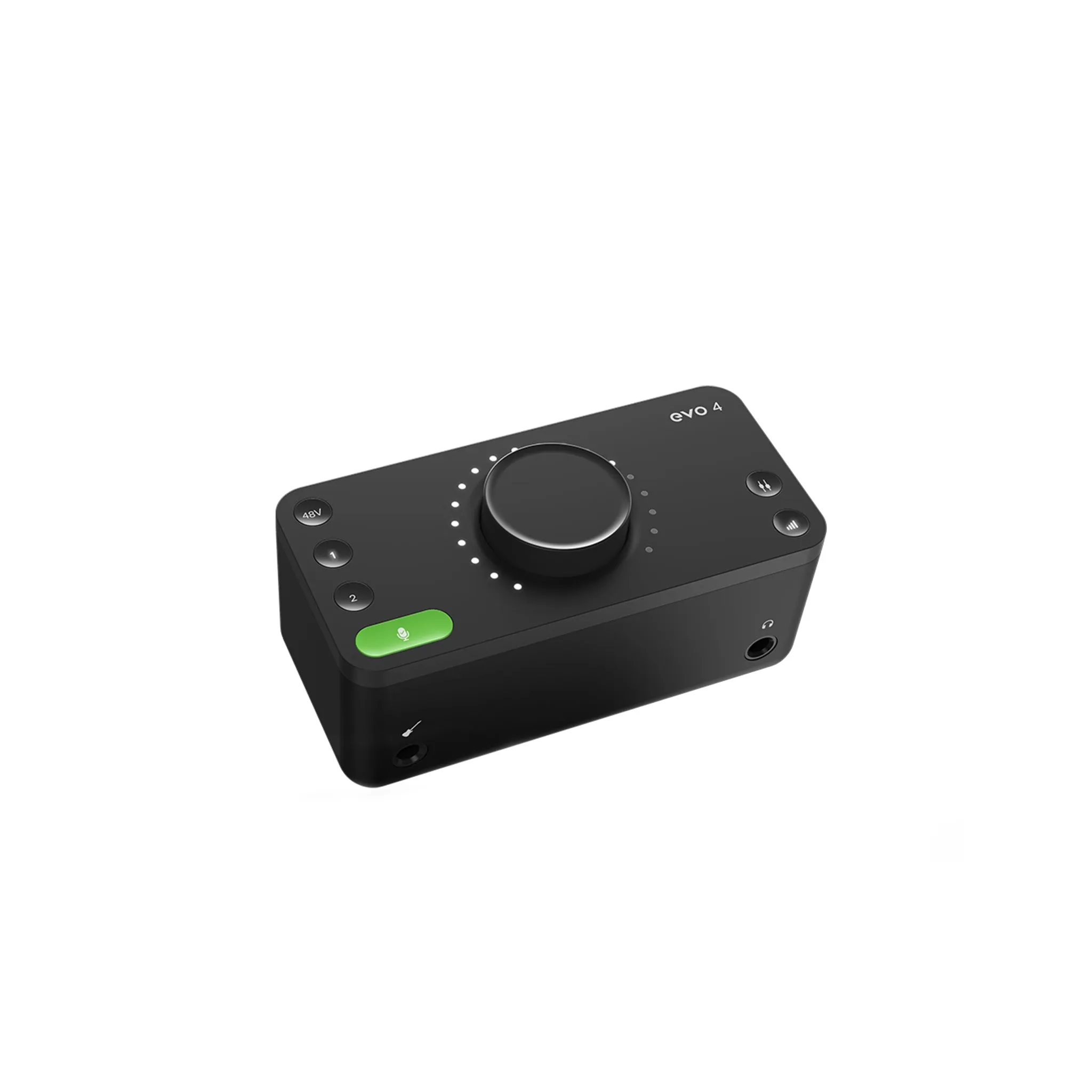

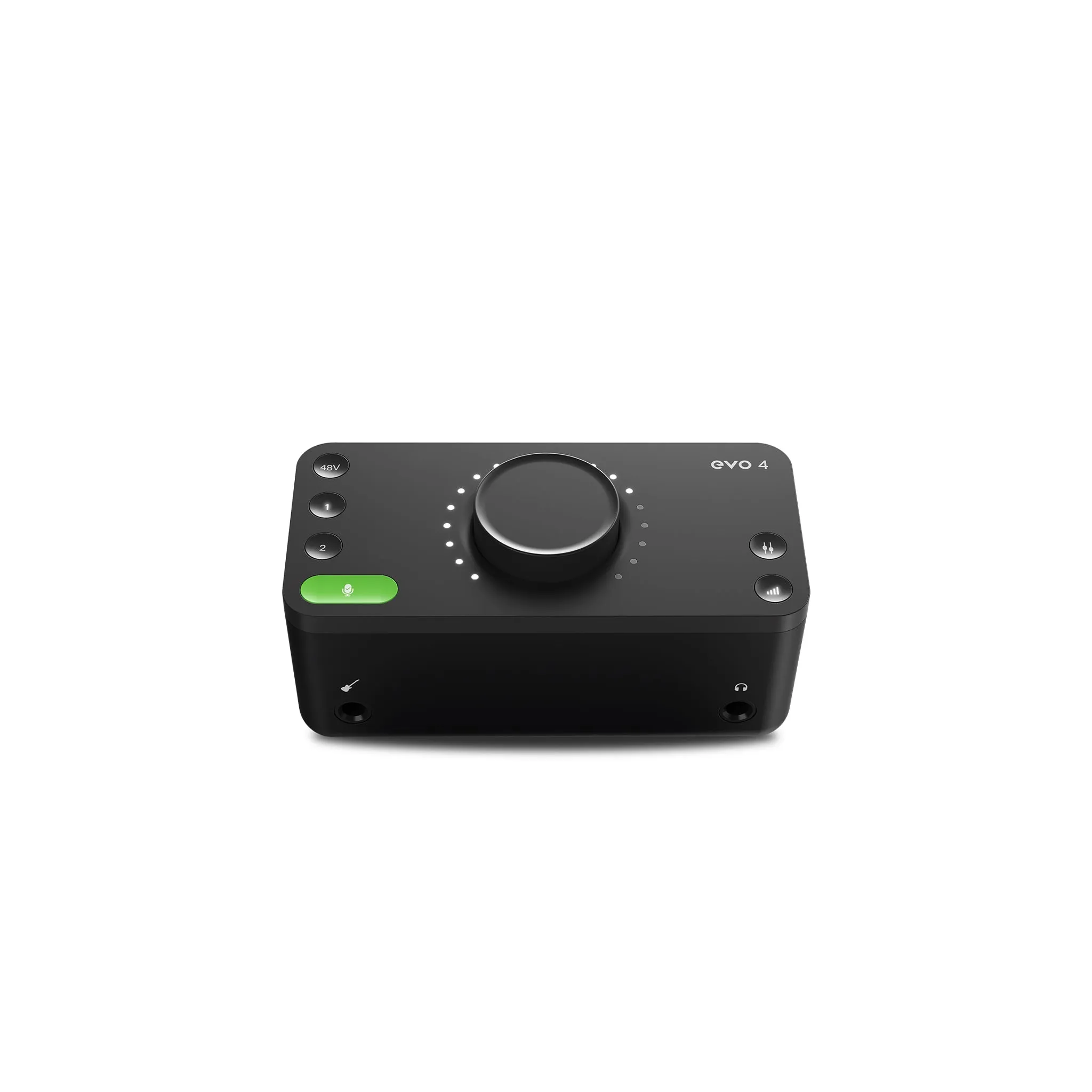

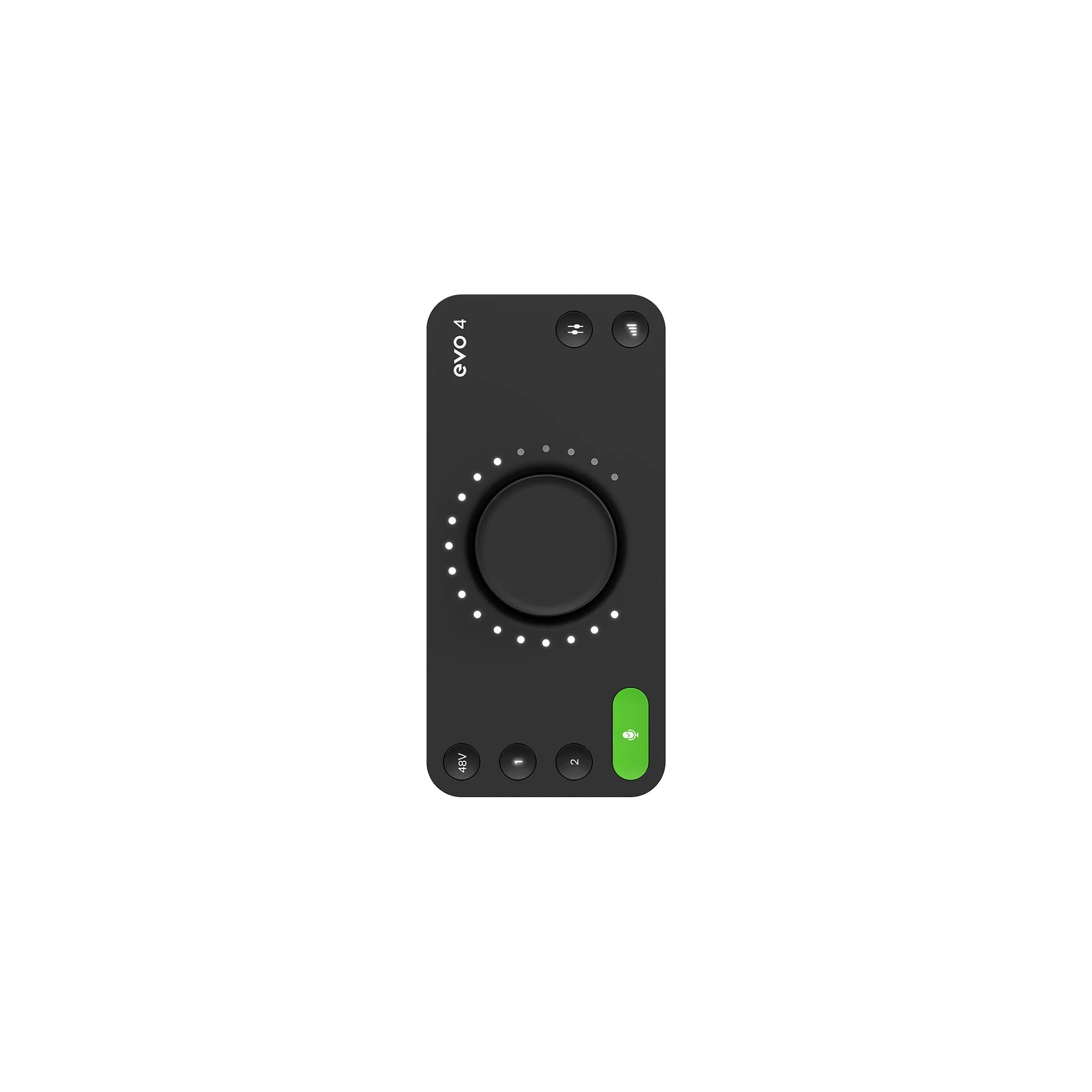

Capture your microphones and instruments and start recording audio directly to your computer with EVO 4’s intuitive feature set audio interface. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect audio interface for beginners and pros alike.
Specifications- Mic Gain Range: 58dB
- Line Gain Range: 58dB (-10dB pad)
- Phantom Power: 48v /-4v @ 10mA/Channel
- Mic EIN:
- CMRR: >85dB @ 1kHz
- Maximum Input Level: 16dBu
- Input Impedance (Mic): >3k? Balanced
- Input Impedance (Line): >10k? Balanced
- Frequency Response: /-0.5dB 10Hz to 40kHz
- Crosstalk:
- THD N @ 0dBu (1kHz): <0.0015%
- SNR: 100dB
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
- Item Type: Audio Interface
